Digital Tens Stimulator Medisana TDP

Natural alleviation of chronic pain

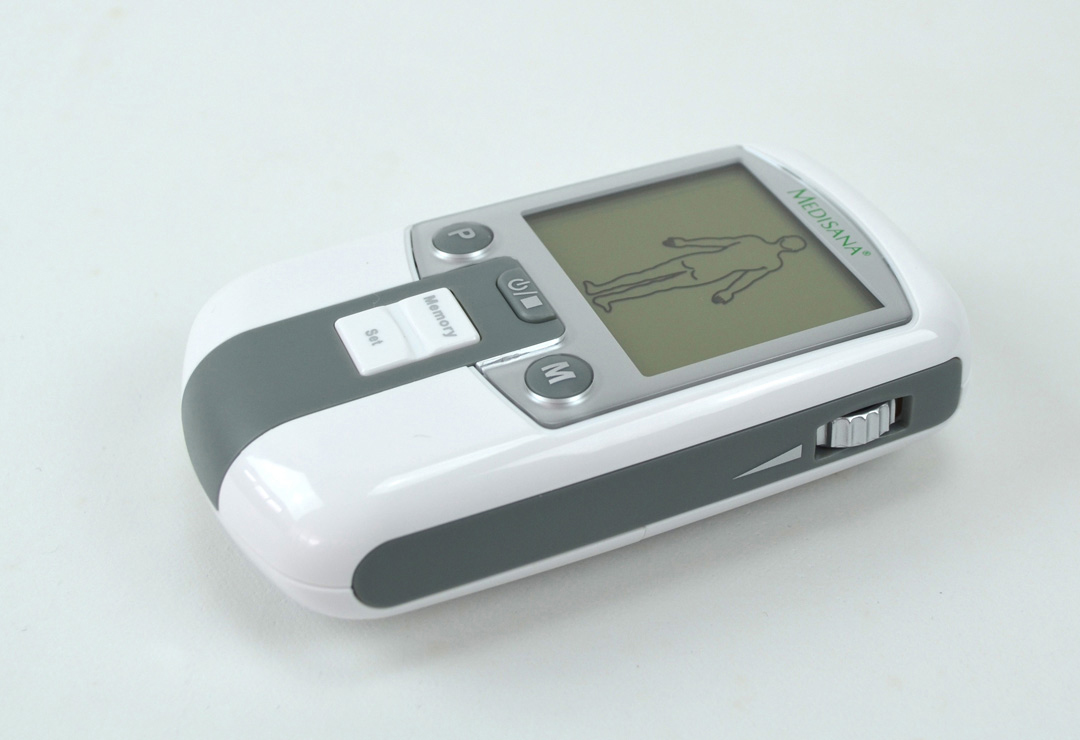

Digital Tens Stimulator Medisana TDP
This product is not available anymore. It is replaced by this product:
Product not deliverable. Please ask for alternatives via email.
30 days right to return
This product is not available anymore. It is replaced by this product:

Article number:


Product warranty

3 years

Producer / Brand

  • medisana_88310_TDP_product.jpg
  • Multifunction device for natural pain relief
  • medisana_88310_TDP_lieferung.jpg
  • medisana_88310_TDP_detail.jpg
  • Multifunction device for natural pain relief
Multifunction device for natural pain relief
  • Description Medisana TDP

    • The Medisana TDP has been particularly developed to be easily used by everyone. Even without special knowledge of the subject 'stimulation current therapy' you can treat yourself safely and easily with the preset programs.

      The best way to relieve the pain is not necessarily the medicine cupboard. Meanwhile some alternatives have proven themselves, without using medicines. TENS - the Transcutaneous Electrical Nerve Stimulation - and the acupuncture as well are part of it. One of the advantages of these methods is not only that they do not have any side effect, but they can also be combined on a device like the Medisana TDP, which associates TENS, EMS (electronic muscular stimulation), DEEP TENS and acupuncture.

      • Two separately adjustable channels with four electrodes
      • Safety circuit for electrode control
      • Different programs for various areas of treatment
      • Display of the battery status
      • Individual settings for every application can be stored
      • Automatic stop function: after 10 seconds without use
      • Automatic switch-off at the end of the programme
      • Different applications: TENS, EMS, DEEP TENS, acupuncture
      • Memory function for every program
      • Blue background lighting during the use
      • With storage pouch
      • Certified medical device

      2 channels = 4 electrodes

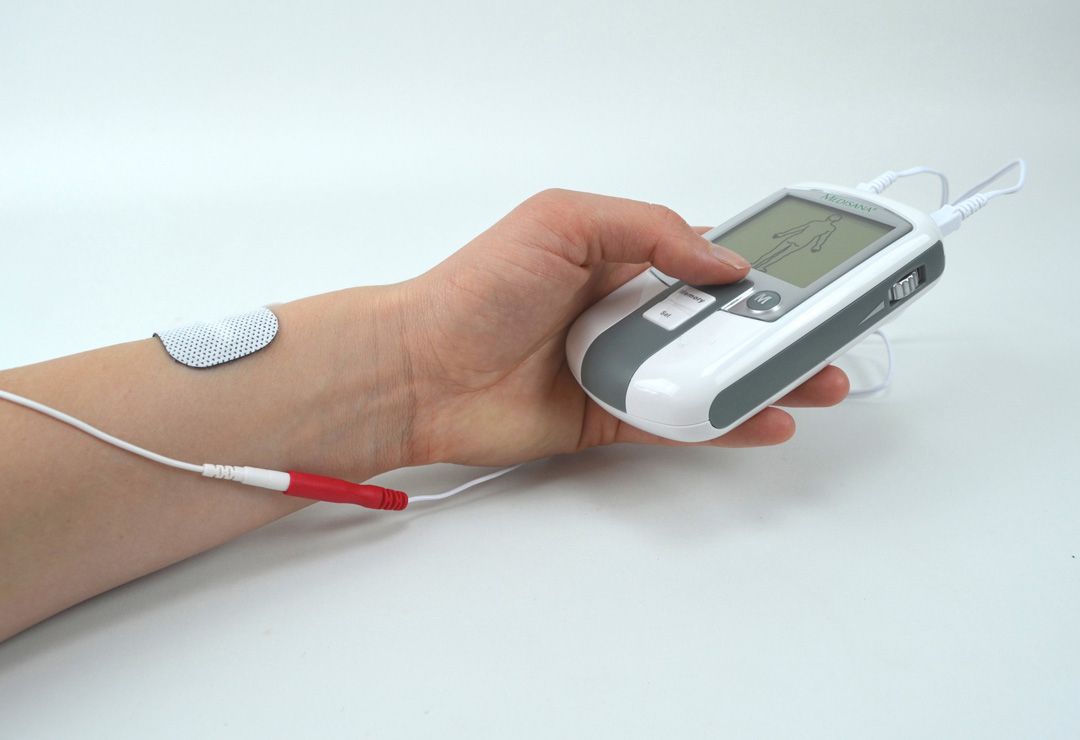

  • Application Medisana TDP

    • Safe shopping: You can pay with invoice.
      TENS pain relief
      TENS is understood as electrical nerve stimulation through the skin. Pain is a natural and important warning signal of our body telling us that 'something is wrong'. If the reason for pain is diagnosed, but cannot or can only partially
      be removed, a long-lasting, persistent pain may evolve (= chronic pain). This pain is therefore useless in its original form as a warning signal and can largely affect the life of the person suffering and possibly cause consequential effects such as tension, depression or reduced quality of life. Chronic pain can be treated with different methods: e.g. with medicaments or operations, but also with alternative methods like acupuncture or TENS that are free of side-effects. On the one hand, the TENS treatment can block pain signals by interrupting the transmission of pulses through the skin to the painful parts by means of electric impulses. The signal "pain" is not passed on to the brain and thus not felt as pain. On the other hand, special TENS applications activate the body's control mechanisms. Gentle electric currents make the body release so-called "endorphins" that serve to reduce pain. The pain is thus stopped, eased or removed by the body itself. This electrical stimulation cannot remove the causes or cure the disease, but change the painful feeling. Painless conditions or pain relief can help the chronically suffering person have new, positive experiences, from which he or she can gain power and energy.

      Burst TENS
      Some people experience severe discomfort when exposed to frequencies under 10 Hz (that is, 10 pulses per second). The burst program generates pulse packets ("burst") with frequencies of 80 to 100 Hz instead of a single pulse.

      EMS muscle building
      With different EMS applications, muscles in the body can be stimulated, which are e.g. slackened after an operation, not trained comprehensively or insufficiently or which are tensioned. In the process, electric pulses cause slight muscle contractions that can stimulate the muscular system "passively" (= without the muscles itself acting).

      Acupuncture is a traditional Chinese healing method basing on the fact that there are points in the body (= acupuncture points), which, when stimulated directly, affect (e.g. animation, pain relief, increase of the energy fl ow etc.) certain body zones or body organs. This stimulation can be achieved with needles, massage, pressure (= acupressure) or with electric pulses, e.g. TENS. Detailed information can be found in the relevant specialist literature.

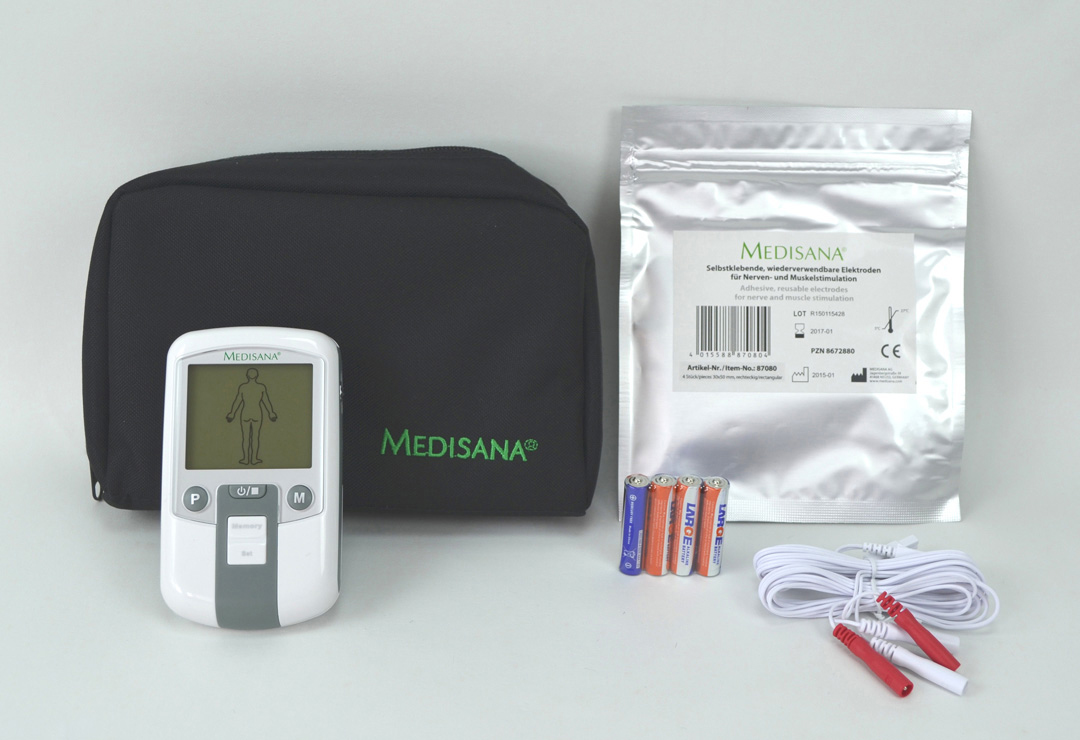

  • Package content Medisana TDP

    • Delivery time according to the information above to Aargau, Appenzell, Appenzell, Basel, Bern, Freiburg, Geneva, Glarus, Graubünden, Jura, Liechtenstein, Luzern, Neuenburg, Nidwalden, Obwalden, Sankt Gallen, Schaffhausen, Schwyz, Solothurn, Thurgau, Tessin, Uri, Wallis, Waadt, Zug, Zurich.
      1 TENS unit with belt clip
      4 electrodes
      2 connecting cables
      4 batteries
      1 storage bag
      1 instruction manual
  • Technical specification Medisana TDP

    • Name and model: MEDISANA TENS pain therapy unit TDP
      Power supply: 4 x 1.5 volt, micro-batteries (AAA, LR03) or equivalent rechargeable batteries
      Channels: 2
      Curve form: symmetrical bi-phasic, mono-phasic
      Output: constant current
      Intensity in 60 steps from 0 to 60 mA
      Frequency 2 - 120 Hz, depending on the program
      Pulse width 50 - 400 μs, depending on the program
      Operating conditions 5 °C to +40 °C at 30 to 75 % rel. humidity
      Dimensions (L x W x H) approx. 115 x 67 x 35 mm (including belt clip)
      Weight approximately 99 g (without batteries)
      Article no. 88310
      EAN number 4015588 883101

      Electromagnetic compatibility:
      The device complies with the EN 60601-1-2 standard for electromagnetic compatibility.

      • MiGeL number: L
      Compulsory health care insurance covers (part of) the costs of certain services, which include, for example, TENS units or light therapy units, if they are prescribed for treatment. There is a special list for items and units (MiGeL). You will find the MiGeL number in the list as well as here, indicated with the respective product.
      • Color: white/ gray
    • Weight: 99 g
    • Size: 12 x 7 x 4 cm
    • Alternative names: M88310
  • Customer feedback and frequently asked questions Medisana TDP

    • Zurich, Geneva, Basel, Frauenfeld, Kreuzlingen, Lausanne, Vevey
      Can something happen to me, due to the current?
      No, because the current strength of the electric pulses is so low that it remains completely safe even with longer applications. However, the intensity should be adjusted to the individual sensitivity. Therefore, start each new application with the lowest intensity level and increase it slowly according to the individual feeling. The application should never be unpleasant.

      I have no experience with stimulation current therapy yet. How can I use the device without problems?
      The MEDISANA TDP has been particularly developed to be easily used by everyone. Even without special knowledge of the subject "stimulation current therapy" you can treat yourself safely and easily with the preset programs.

      How often can I use the electrodes?
      According to the condition of your skin and if observing the application instructions you can use the electrodes up to 30 times.

      Can I use other electrodes as well?
      You should only use original MEDISANA electrodes. You can also use duration electrodes with gel.
